Tühjade torude paigaldus ja ehitussüvendi kaevamine
-
Pakkumiste tegemine
kuni 18.10.2023 -
Võitja valik kuni
25.10.2023
| Hanke lõpp: | K, 18. oktoober, 2023 |
| Maakond: | Lääne-Virumaa |
| Muu asula: | Türje |
| Tööde algus: | N, 19. oktoober, 2023 (Soovituslik) |
| Tööde lõpp: | P, 31. märts, 2024 |
| Ehitusmaterjalid: | Töö tellija poolt |
| Soovin pakkumisi: | Summa kogu projektile |
Töö sisu
Minu eesti keel ei ole nii hea, järgmine kuulutus on tõlgitud Google Translate'iga. Kui tõlge jääb ebaselgeks, leiate lõpust ingliskeelse originaalteksti.
Otsin ettevõtet tühjade torude matmiseks kaablite ja veetorude eluasemeks külmasäästlikus sügavuses oma kinnistule Lääne-Virumaal Järva-Jaani lähedal Türjel.
Kaevu ümber tuleks kaevata 3,5x3,5 m suurune süvend, et valmistuda järgmisel kevadel kaevumaja ehitamiseks.
Tühjade torude matmiseks tuleb kaevata ligikaudu 110 m ca 1,8 m sügavused kaevikud. Sellesse tuleb torude kaitseks panna liivapeenar, liiva saab naaberküla karjäärist. Toru tuleb katta liivaga ja paigaldada hoiatuslint juhuks, kui tulevikus toimub kaevamine, enne kui kaevikud uuesti pinnasega täituvad.
Torude otsad tuleb katta.
Oleks tore, kui kaablite/torude paigaldamise hõlbustamiseks saaks paigaldamise ajal tühjadesse torudesse panna köied, kuid see pole kohustuslik.

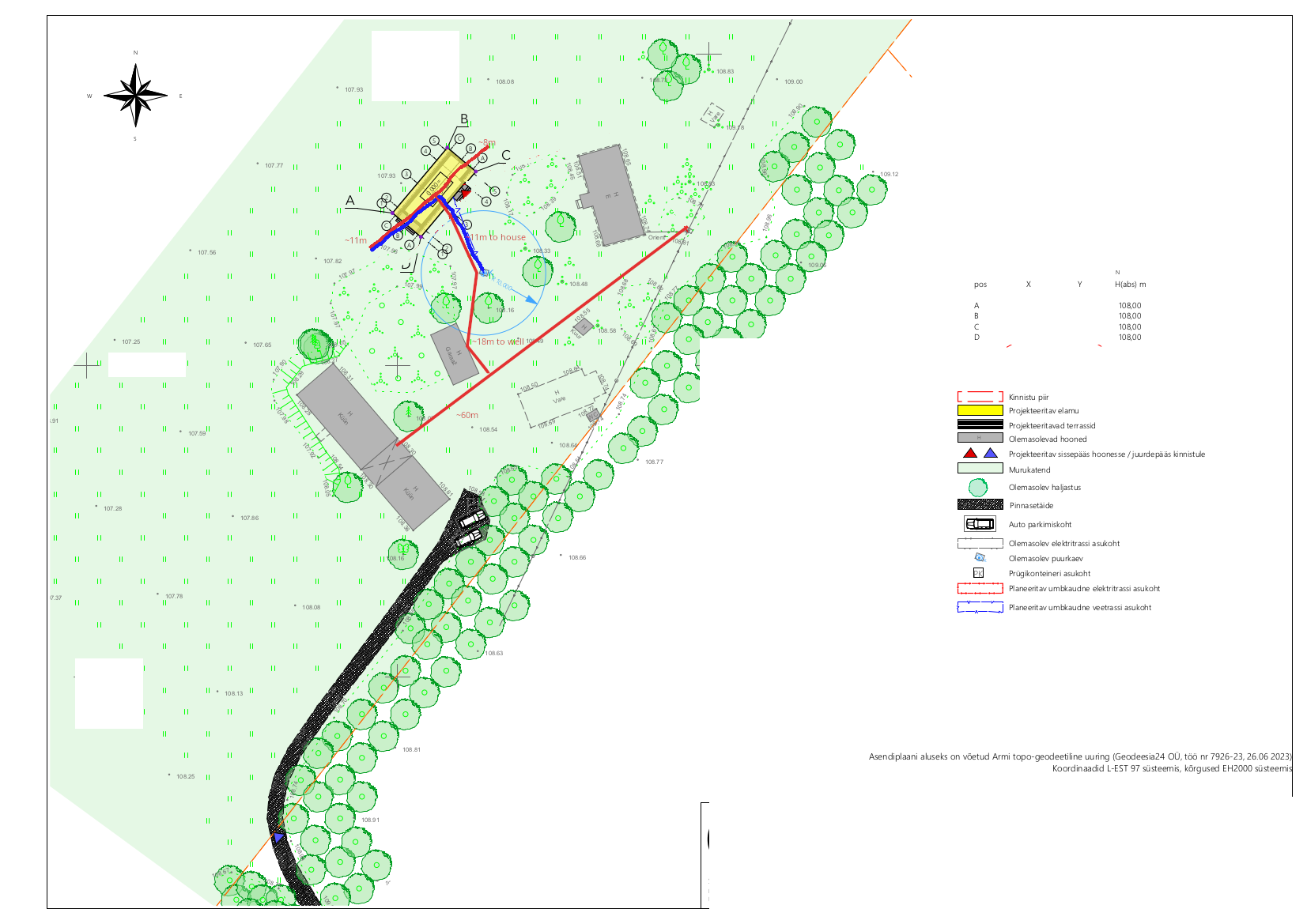

Torude planeeritud paigutust näete lisatud kaardil. Torude ja kaevu täpne asukoht märgitakse kinnistule värviga.
Kaardile märgitud punased ja sinised jooned peaksid olema eraldi torud, kuid võivad minna kõrvuti samas kaevis.
Red Pipe'is asuvad toite- ja võrgukaablid ning sinises torus veetorud.
Kahjuks on juurdepääsutee kinnistule vaid väike kruusatee. Haagisega 3.5 to veduriga pääseb probleemideta ligi aga veoautoga ligipääsus pole kindel.
Kuna mu eesti keel pole nii hea, eelistatakse inglise keeles suhelda oskavat seltskonda.
I am looking for a company to burry empty pipes as housing for cables and water pipes in a frost-save depth on my property in Türje, Lääne-Virumaa, near Järva-Jaani.
Also, a pit of 3.5x3.5m should be dug around a Well, in preparation for the build of a Well-house next spring.
To bury the empty pipes, approximately 110 m of about 1.8 m deep trenches must be dug. A bed of sand must be placed in this to protect the pipes, the sand can be obtained from a quarry in the neighboring village. The pipe must be covered with sand and a warning tape must be placed in case excavation will occur in the future, before the trenches are filled with earth again.
The end of the pipes need to be caped.
It would be nice If ropes could be placed in the empty pipes during installation to make the installation of the cables/pipes easier, but this is not a must.
You can see the planned placement of the pipes on the attached map. The exact location for the pipes and the pit will be marked with paint on the property.
The Red and Blue lines marked on the map should be separate pipes but can go next to each other in the same trench.
The red Pipe will house Power and Network cables and the blue pipe will house water pipes.
Unfortunately, the access road to the property is only a small gravel road. It can be accessed with a 3.5 to transporter with a trailer without problems but I am not sure about access with a truck.
Since my Estonian is not that good a company that can communicate in English is preferred.
Pildid, video ja failid
Pakkumised
Pakkumisi kokku: 2
| Ettevõte | Summa | Vestlus | ||
|---|---|---|---|---|
ID50618
Pakkuja profiil
|
4 650€ KM lisandub | KM lisandub | 14.10.2023 | Vestlus (0) |
|
Pakkumise kirjeldus:
Hind sisaldab: |
||||
|
ID34288
Pakkuja profiil
|
4 800€ KM lisandub | KM lisandub | 15.10.2023 | Vestlus (0) |
|
Pakkumise kirjeldus:
Hello |
||||
Küsimused hanke korraldajale
I have a couple of questions.
- Do I understand right that You need water pipe 22 meters? We don`t have a blue pipe in Estonia. We usually put water pipe directly under the ground because the pipe is vibrating and when water pipe is in the protection pipe (You wrote blue pipe), it will make a hole in a water pipe during some time of period. So, I recommend to put water pipe directly into the ground.
- The red pipe that You mentioned, is actually yellow. It protects electricity cables. Do I understand right that You need 110 meters of that pipe?
- How deep should be the whole around the well (3,5x3,5 meters)? Do you need to take out only the top soil?
- Where to put pile of top soil that has digged out? Level off on the ground or it will stay aside?
Korraldaja vastus: 13.10.2023 18:58
with blue and red I meant the color of lines on the map not the actual color of the pipe.
I did have this kind of pipe in mind: https://www.emc-direct.de/wellrohr/hdpe-wellrohr/ungeschlitzt-450n-mit-zugdraht/4190/wellrohr-hdpe-innen-glatt-einzughilfe?number=36303-B sorry I don't have a link in English maybe you can translate it with google chrome? this one is black but I don't really care for the color.
If you would recommend not to put the water pipe in another pipe then leave it out of the offer but please mention this when you do the offer.
My idea to put the water pipe in a protective pipe so that in the event of frost damage the pipe could be easily replaced.
Also, the entire construction project on the property will take place in several sections(next year the Well-House, then a smaller shed used as Office without a water connection, a bath-house with a water connection, and then a bigger house with a water connection ) and it would be easier to put the water pipe in the other pipe once the pump and water system in the new buildings are done.
The trench for the pipes will be about 110m, but there is also the length that the pipe needs to go under and out of the ground and there 2 t crossings that should probably be a shallower angle since it's hard to pull cable around a 90-degree bend and several buildings are to be connected. There is the barn, the garage, the well-house (will be built next year), and 3 other buildings (the exact construction date has not yet been determined but you can see the position of the biggest one on the map). So we have to come out of the ground in several places and the pipe should be big enough for several cables. I think 130m should be enough with an inside diameter of 6 or 7 cm.
I thought the hole around the well should be as deep as the trenches for the cables/pipes.
Next year I want to build a well house around the well with a deep, insulated foundation to keep the pipes frost-free down to below the frost line. So at least 1.8m, 2 would probably be better.
The earth can be placed next to the hole, a large part will later be used as filling around and between the foundation of the well-house, the rest I can level myself.
