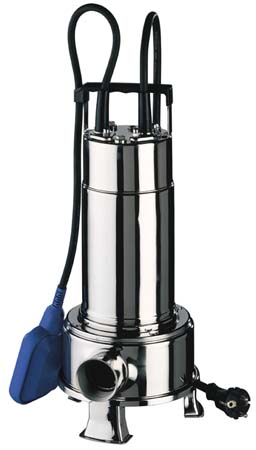

Müüa EBARA veepump ,sobib ideaalselt ka reovee eemaldamiseks.Kaalub 11.5 KG.
SPECIFICATIONS
• Maximum liquid temperature: 50°C
• Maximum immersion: 10 mts
• Maximum passage of solids: 35 mm
MATERIALS
• Pump casing, impeller, cover, casing cover and motor casing in AISI 304
• Shaft in AISI 303
• Double mechanical seal with interposed oil chamber: upper in carbon/ceramic/NBR, lower in Sic/SiC/NBR
TECHNICAL DATA
• Asincronous 2 poles motor
• Insulation class F
• Protection degree IP68
• 1~230V +- 10% 50Hz - 3~400V +- 10% 50Hz
• Permanent split capacitor and automatic thermal overload protection for single-phase version
• Thermal protection to be provided by the user for three-phase version
• DNM 1”1/2
